What Is Hydraulic Quick Coupling?

Hydraulic quick couplings typically consist of two mating halves:

• Male Half (Plug or Nipple)
• Female Half (Socket or Coupler)

When connected, the internal valves open to allow hydraulic fluid to flow. When disconnected, the valves automatically close to prevent fluid loss and contamination.

• Quick connection/disconnection: No tools needed
• Leak prevention: Valves seal upon disconnection
• Pressure handling: Designed to withstand high-pressure fluid systems
• Contamination control: Helps keep hydraulic systems clean

2.Types of Hydraulic Quick Couplings

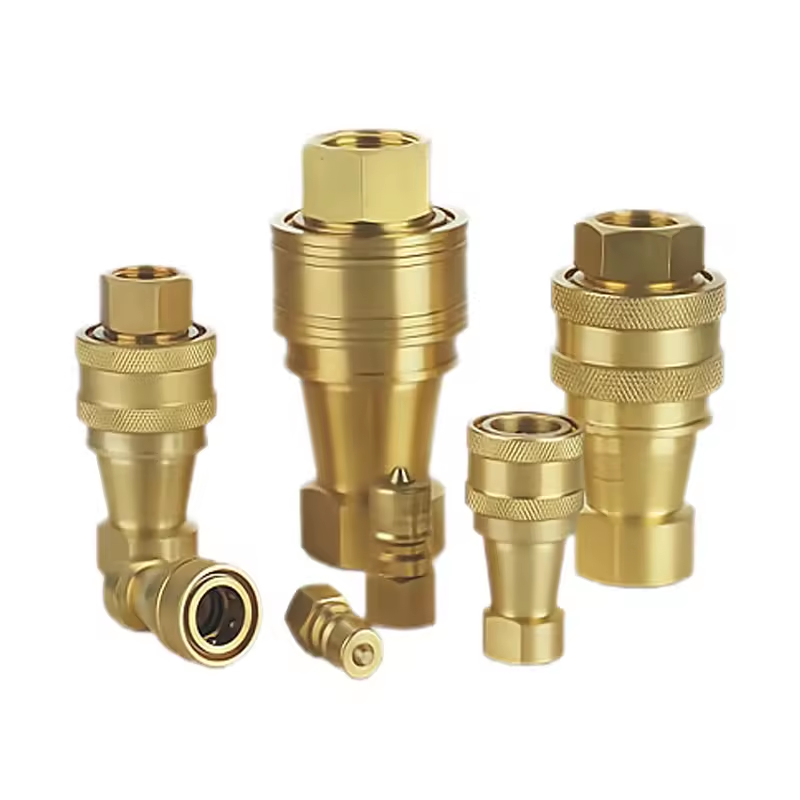

1. Push-to-Connect Couplings

Mechanism:

• Simply push the male and female halves together to connect.
• Internal valves open automatically when coupled.

Best For:

• Quick-change hydraulic systems
• Moderate-pressure applications
• Equipment that requires frequent tool swaps

Key Benefits:

• Fast, one-handed operation
• No tools required
• Great for speed and convenience

---

2. Screw-to-Connect Couplings

Mechanism:

• Threads on both ends are screwed together to form a secure connection.
• Often sealed with O-rings or threads.

Best For:

• High-pressure systems
• Pulsating or shock-loaded environments (e.g., hydraulic hammers, breakers)
• Applications where accidental disconnection must be avoided

Key Benefits:

• Strong, secure fit
• Can be connected under residual pressure
• Resistant to vibration and impact

---

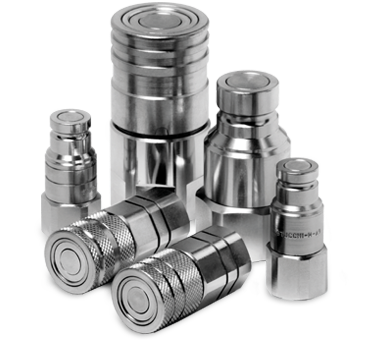

3. Flat-Face (Flush Face) Couplings

Mechanism:

• Flat mating surfaces reduce air and fluid inclusion during connection.
• Typically push-to-connect or screw-to-connect designs.

Best For:

• Construction and forestry equipment
• Situations where cleanliness is critical
• Environments prone to dust or dirt

Key Benefits:

• Minimal fluid loss or spillage
• Easy to wipe clean before connection
• Helps prevent contamination of hydraulic systems

---

4. Ball or Pin Locking Couplings

Mechanism:

• Uses a set of locking balls or pins that snap into place to hold the connection.
• Usually spring-loaded for automatic locking.

Best For:

• General-purpose hydraulic systems
• Agriculture, manufacturing, and industrial equipment

Key Benefits:

• Simple, reliable locking mechanism
• Audible or tactile “click” when locked
• Widely available and cost-effective

3.Common Applications

• Excavators and loaders: For switching hydraulic tools (e.g., breakers, augers)
• Tractors: For connecting hydraulic implements (e.g., plows, harvesters)
• Industrial automation: For quick line changes
• Hydraulic test benches: For quick setup and teardown

4.Benefits of Using Quick Couplings

• Reduced downtime
• Increased productivity
• Safer fluid handling
• Simplified maintenance

---

Final Thoughts

Hydraulic quick couplings are essential for any system that demands frequent hydraulic connections. They save time, protect your equipment, and improve overall efficiency. When choosing a coupling, always consider pressure rating, fluid type, environmental conditions, and compatibility with your equipment.
